About SCADA

Supervisory control and data acquisition (SCADA) is a control system architecture comprising computers, networked data communications and graphical user displays.

The primary function of the SCADA system is to make available unmanned operation for geographically dispersed deep tube wells from SCADA station located in Mods zone office (“Local SCADA”). The Local SCADA system in each zone shall have operational interface to support remote operation of the deep tube wells assigned to the particular Mods zone. The Local SCADA shall provide the capability to acquire from deep tube wells data of operating condition, show abnormal or alarm conditions, remotely operate the pump, provide real-time monitoring and control of deep tube wells. This specification defines the basic requirements of SCADA software that will be installed at MODS Zone office to perform the aforesaid functions on the deep tube wells (“DTW”) corresponding Mods zone offices.

SCADA Provides:

  • Control operations
  • System components
  • Alarm handling
  • PLC/RTU programming



SCADA and PLC

A PLC is a piece of physical hardware. SCADA, on the other hand, is software. To this end, a PLC is physical. You can hold a PLC and feel it what’s inside the enclosure box.

As software, SCADA operates on a computer system and can be compared to an operating system like Linux or Windows


DCS

A distributed control system (DCS) is a computerized control system for a process, in which autonomous controllers are distributed throughout the system, but there is no central operator supervisory control.


HMI

Computer based HMI (Human Machine Interface) provide the means by which process and interact with the PLC control system. A well designed combination of PLC's and HMI's is what Datasoft design will provide to DWASA.

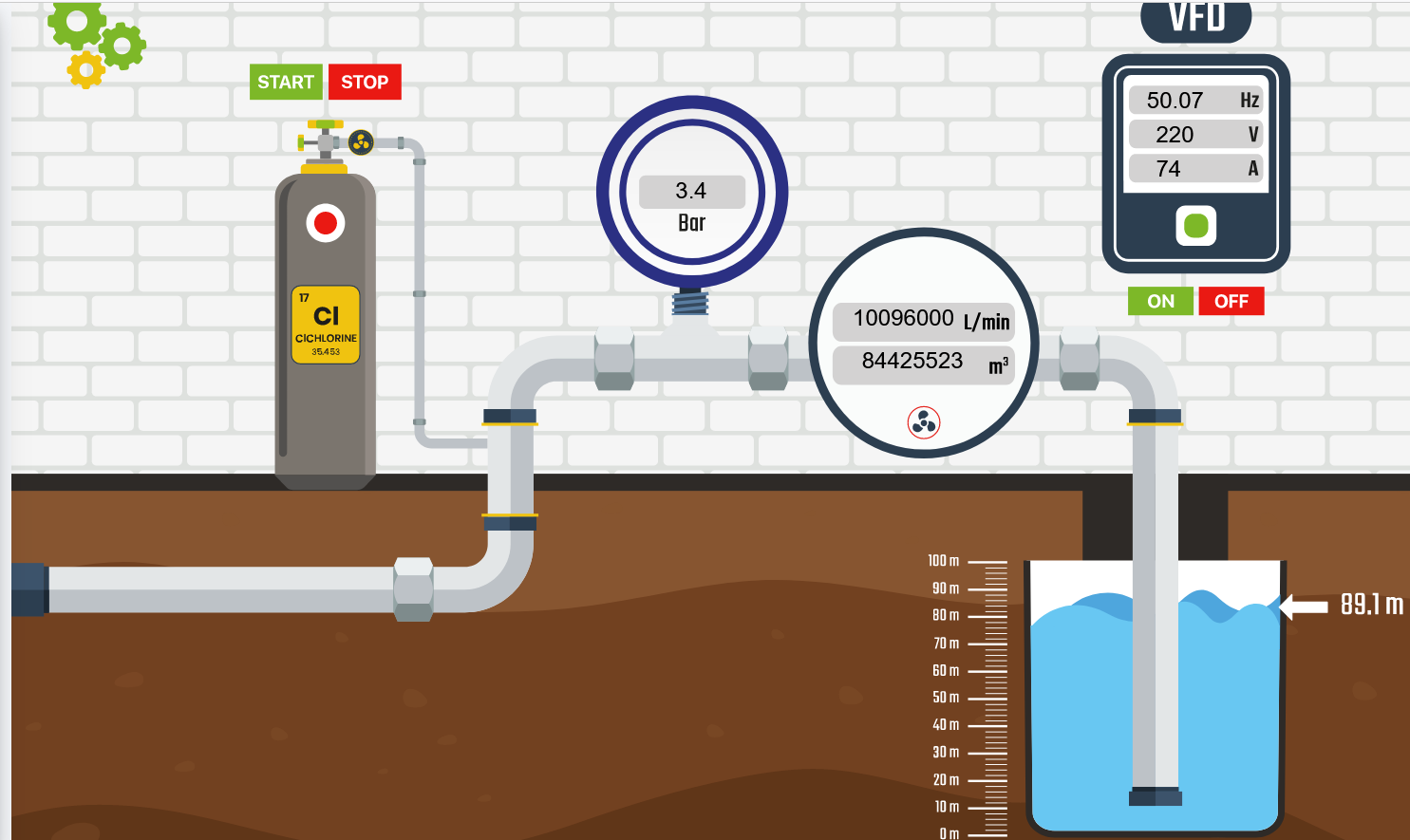

SCADA
DWASA SCADA SYSTEM

Software Modules:

  • Data Acquisition
  • Data Decoding
  • Front End Processing
  • Database
  • Command Handler
  • Mobile Apps



Acquisition:

  • Acquire data over tcp/ip
  • Write raw data in file
  • Save file in a folder according to following structure
  • File saving format (SCADA/DWASA/Year/Month/file)



SCADA Hardware

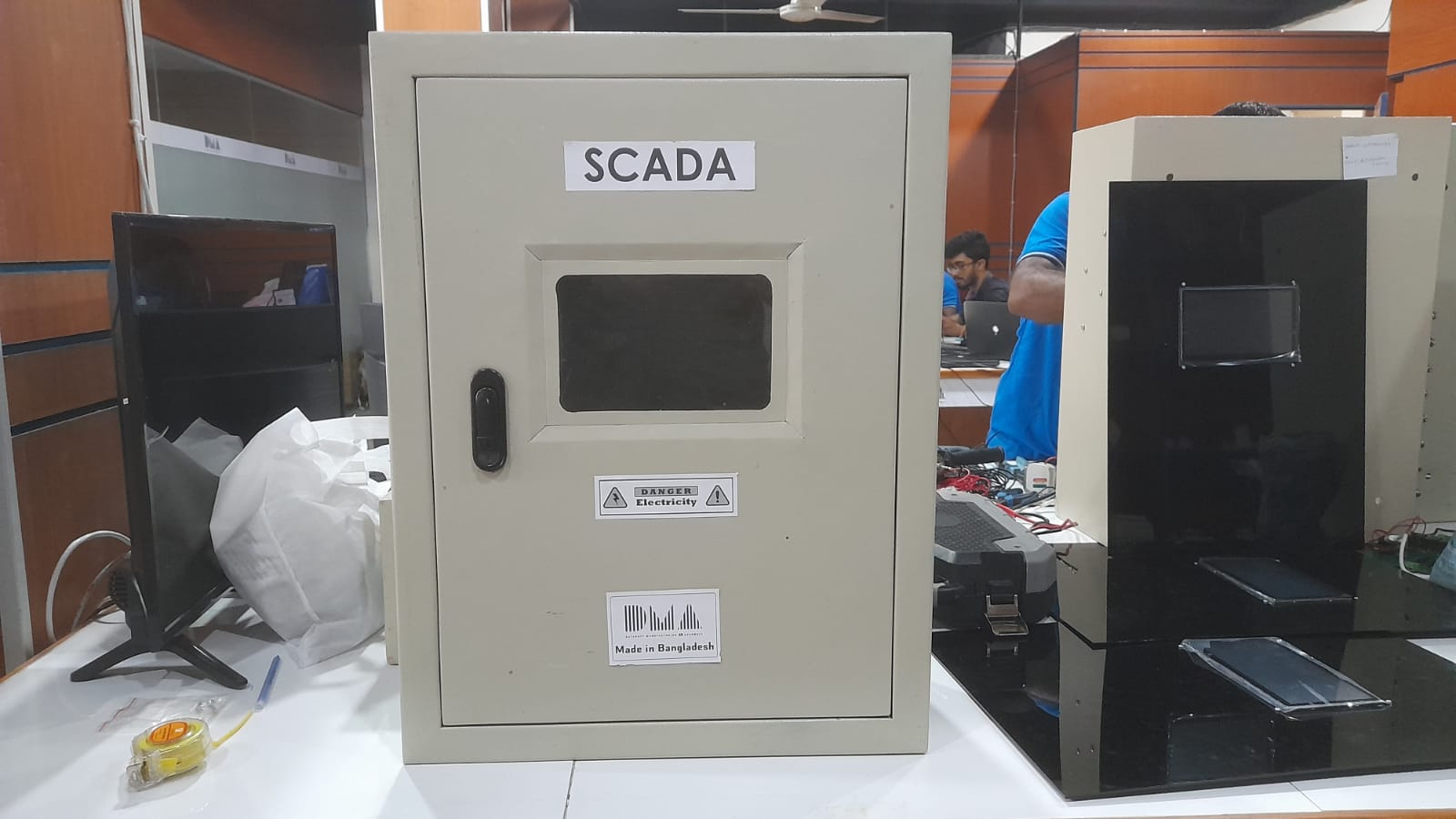

DWASA SCADA Hardware System

Peripheral Controls

DMA SCADA has In-built Peripheral control relays that can oparate external devices.

Sensor Monitor

DMA SCADA system can be implemented With various monitoring sensors. DMA is more than capable for building ,implementing and maintaining SCADA devices with various senors

Battery Backup

DMA Scada devices has built in Battery Backup system in case of power failure.

FailSafe Storage

DMA provide IOT Cloud Server with Analytics Software. We focus on Data Center building in cloud configuration, Data processing and establishing large databases for SCADA devices.

GSM-Modem

DMA Scada devices uses the latest and most effective GSM modem system for smooth data transaction.

Modbus Connectivity

Our SCADA system supports Modbus communication protocol to control and communicate with other systems like VFD, Energy meter, sensors, etc.

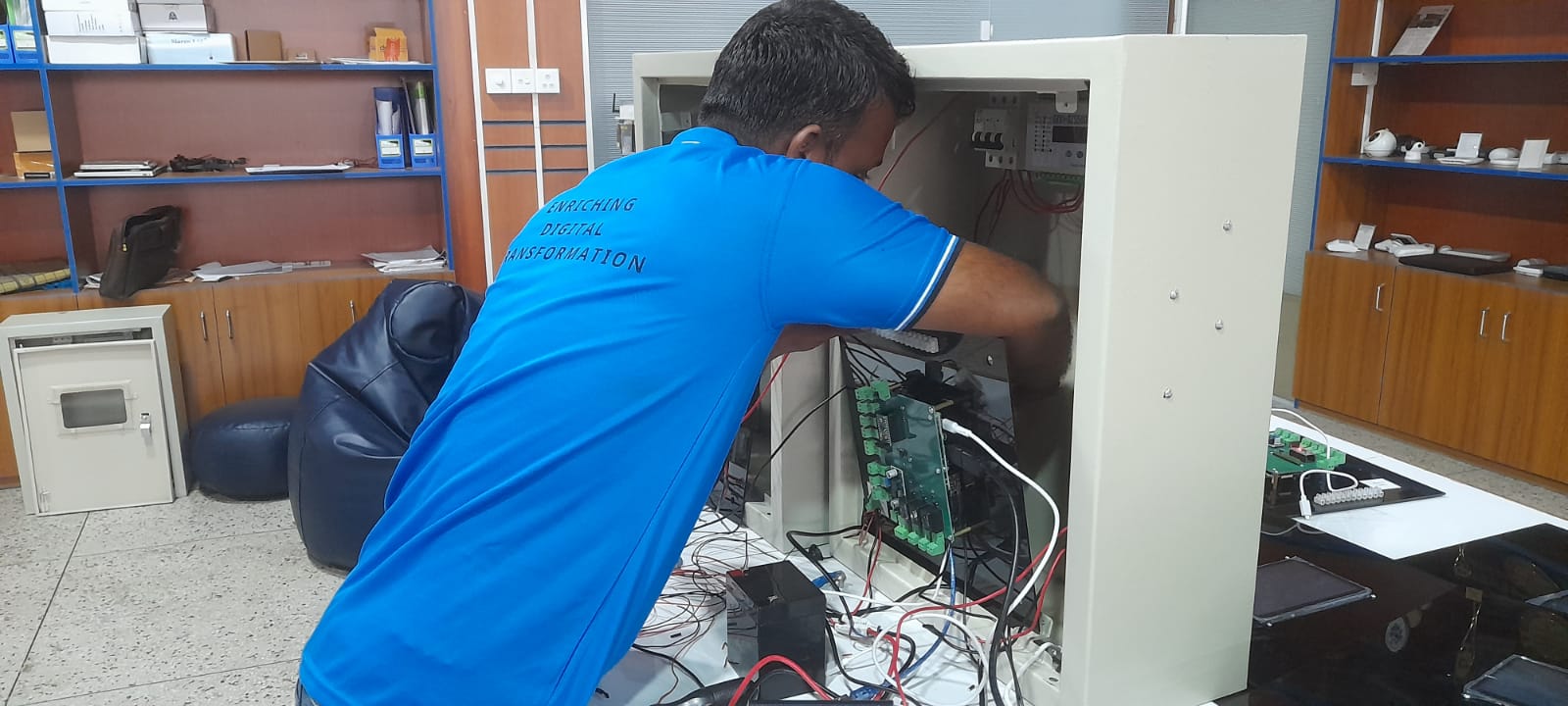

RTU Panel

DMA Scada devices uses the latest and most effective RTU system.

Touch-Display

DMA uses intarative tounch display with all our scada devices for easy display and control.
